VERTICAL AIR RECEIVERS
Vertical Compressed-Air Tanks for Industrial Applications (100 to 10,000 Litres).
M'DORA provides UK and international customers with access to vertical air receivers manufactured by our specialist production partner in Türkiye with multiple working pressure and connection options.
PRESSURE-VESSEL STEEL
Standard configurations are manufactured using P265GH or P355GH certified pressure-vessel plate steel, tailored to design temperature and working pressure specifications.
Final material grades and certification requirements are confirmed during technical review.QUALITY & COMPLIANCE
Manufactured in accordance with Directive 2014/29/EU (Simple Pressure Vessels) or Directive 2014/68/EU (Pressure Equipment Directive - PED), with applicable CE marking and test certifications.
Hydrostatically pressure-tested before dispatch.VERTICAL AIR RECEIVER PRODUCT LIST
Standard vertical configurations from 100 Litres to 10,000 Litres.
| Capacity (L) | Outer Diameter Ø (mm) | Overall Height H (mm) | Available Design Pressures | Action |
|---|---|---|---|---|
| 100 L | 323 mm | 1,450 mm | 11 bar 16 bar 40 bar | Select → |
| 200 L | 500 mm | 1,450 mm | 11 bar 16 bar 40 bar | Select → |
| 300 L | 500 mm | 1,830 mm | 11 bar 16 bar 40 bar | Select → |
| 500 L | 600 mm | 2,110 mm | 11 bar 16 bar 40 bar | Select → |
| 1,000 L | 850 mm | 2,210 mm | 11 bar 16 bar 40 bar | Select → |
| 1,800 - 2,000 L | 1,150 mm | 2,400 mm | 11 bar 16 bar 40 bar | Select → |
| 3,000 L | 1,400 mm | 2,560 mm | 11 bar 16 bar | Select → |
| 3,000 L | 1,150 mm | 3,300 mm | 40 bar | Select → |
| 4,000 L | 1,400 mm | 3,300 mm | 11 bar 16 bar | Select → |
| 5,000 L | 1,600 mm | 3,200 mm | 11 bar 16 bar | Select → |
| 6,000 L | 1,600 mm | 3,700 mm | 11 bar 16 bar | Select → |
| 8,000 L | 1,600 mm | 4,670 mm | 11 bar 16 bar | Select → |
| 10,000 L | 1,900 mm | 4,370 mm | 11 bar 16 bar | Select → |
CONNECTION CONFIGURATIONS

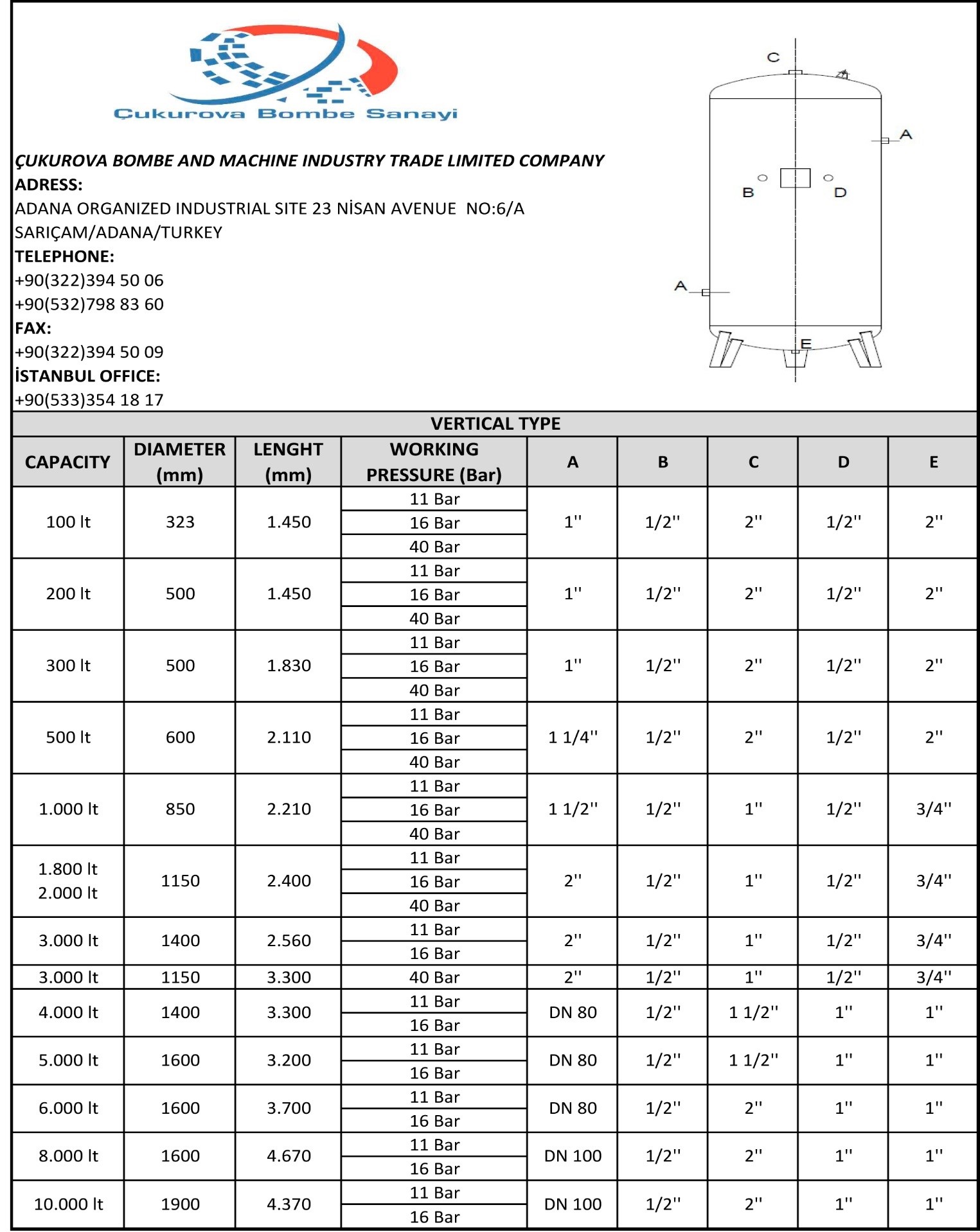

Connection sizes and positions vary according to the selected tank capacity and pressure configuration. Please review the applicable technical drawing or submit your required inlet, outlet, drain, instrumentation and safety-connection details with your enquiry.
