Specialist Metal Forming

ELLIPTICAL AND TORISPHERICAL DISHED HEADS

Pressed Dished Heads from 48 mm to 1,150 mm manufactured by our specialist production partner in Türkiye.

A wide range of standard diameter and thickness combinations is available for pressure-vessel, tank, cylinder and industrial fabrication applications.

REQUEST A QUOTE VIEW DIMENSION TABLES

DIN 28013

ELLIPTICAL DISHED HEADS

Available in standard diameter and thickness combinations from 48 mm up to 1,150 mm. Their formed geometry supports accurate vessel assembly and consistent circumferential welding in cylinder, tank and pressure-vessel production.

R = 0.8D | r = 0.154D | h1 ≥ 3.5t | h2 = 0.26D | H = h1 + h2

DIN 28011

TORISPHERICAL DISHED HEADS

Available in standard combinations from 250 mm up to 1,150 mm. They provide a practical and widely used end-form solution for tanks, pressure vessels and other fabricated equipment.

R = D | r = 0.1D | h1 ≥ 3.5t | h2 = 0.2D | H = h1 + h2

STANDARD DIMENSIONS

Use the filters below to view available diameter and thickness combinations.

Product Code	Diameter D (mm)	h3 (mm)	Thickness t (mm)	Edge Detail	Action

* Dimensions and availability subject to technical confirmation. For custom specifications, submit your CAD drawing. Enquire Custom Dimensions →

EDGE CONFIGURATIONS

Different edge configurations are available depending on the selected dished-head type, diameter, thickness and intended assembly method. Please identify the required edge detail in your enquiry or upload a technical drawing for review.

Detail A Straight flange trimmed edge for standard butt or lap joints.

Detail B Bevelled preparation (chamfered angle) for circumferential full-penetration welding.

Detail C Custom radiused or profile transition edge according to client drawing.

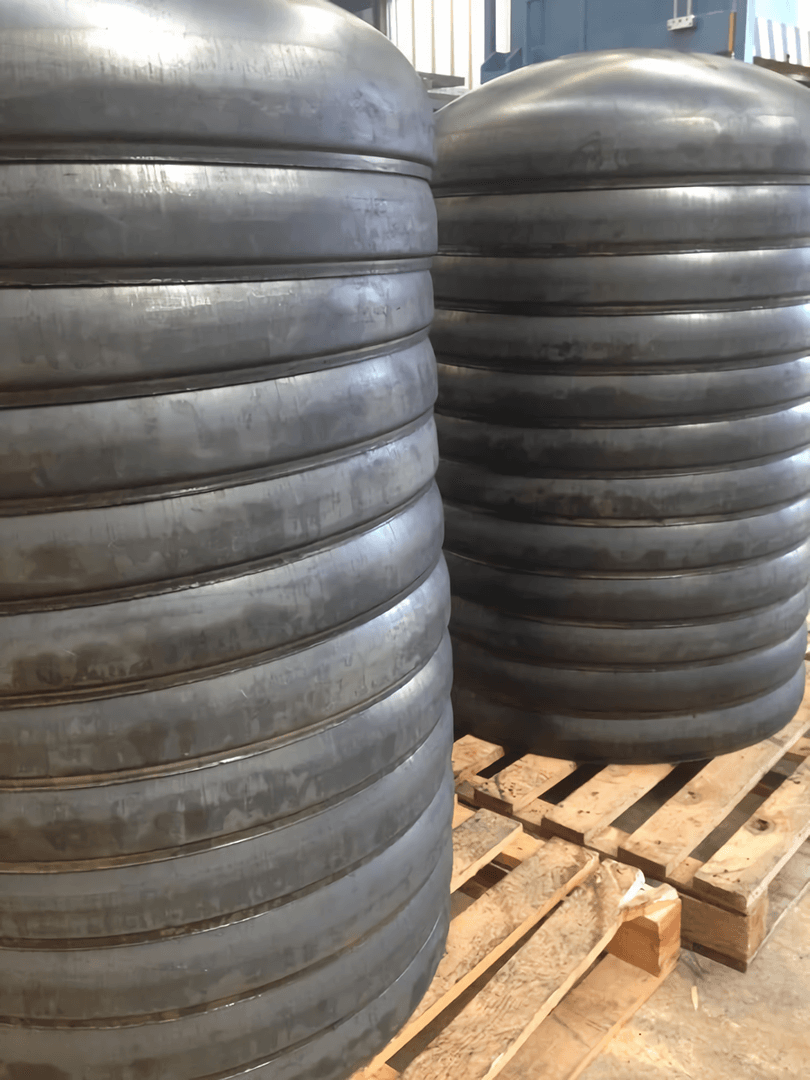

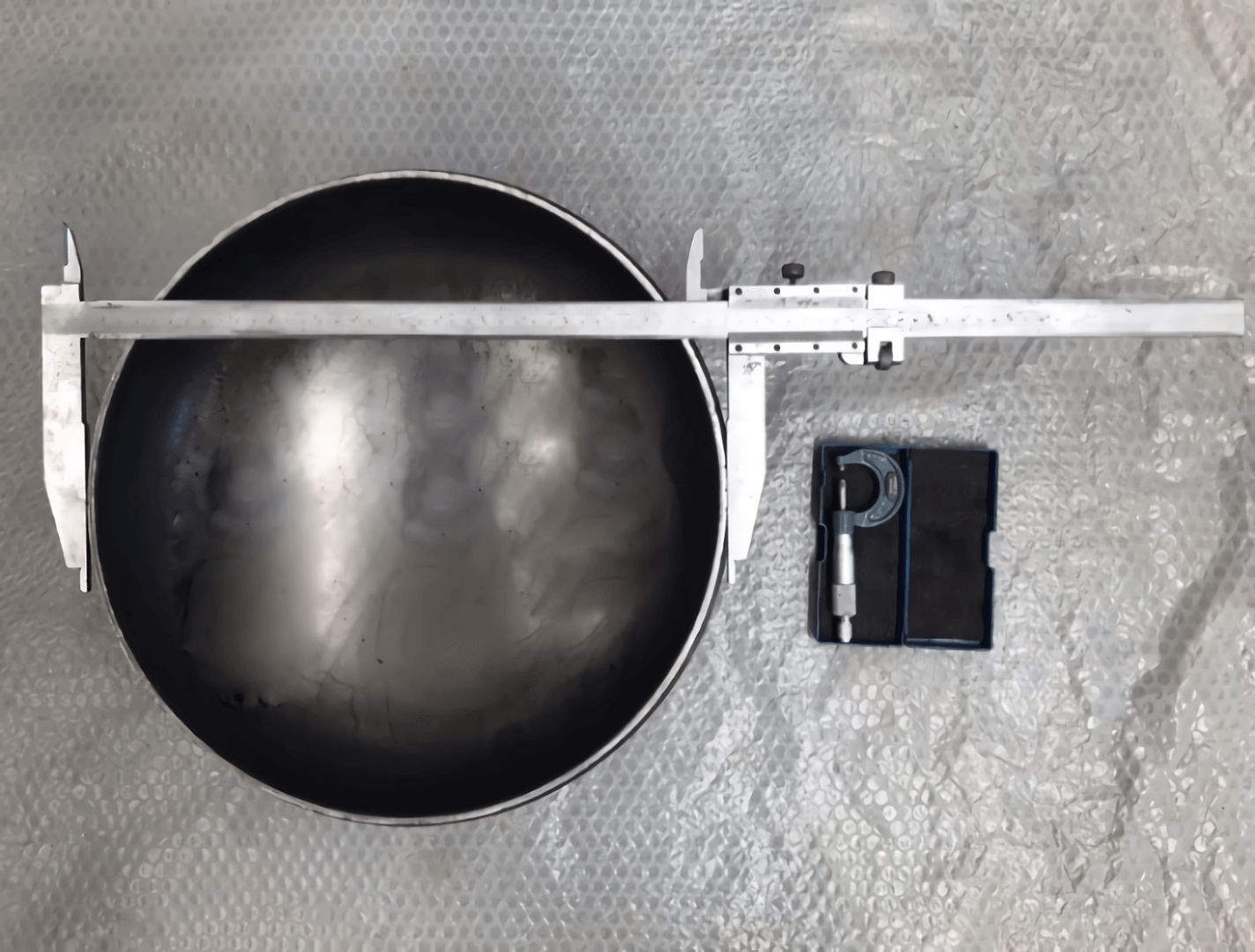

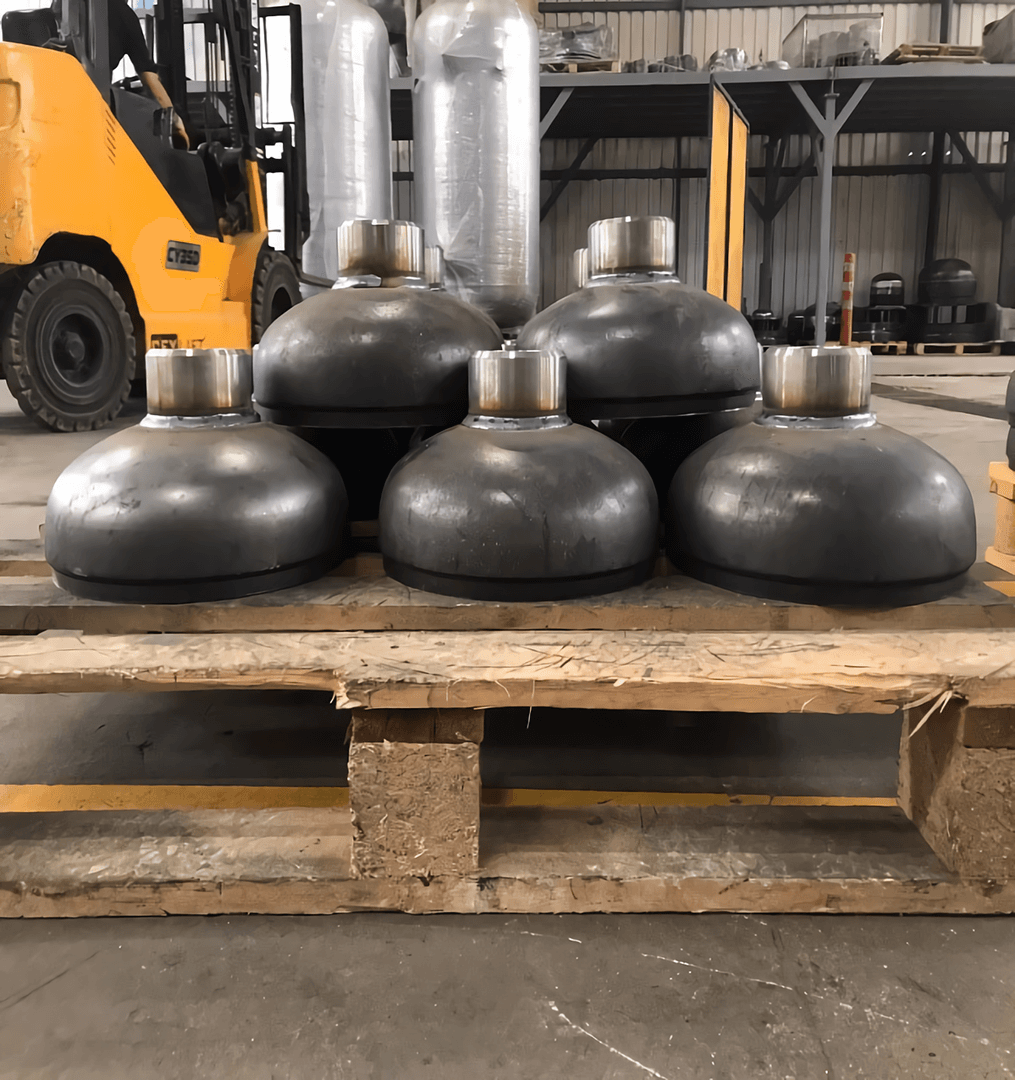

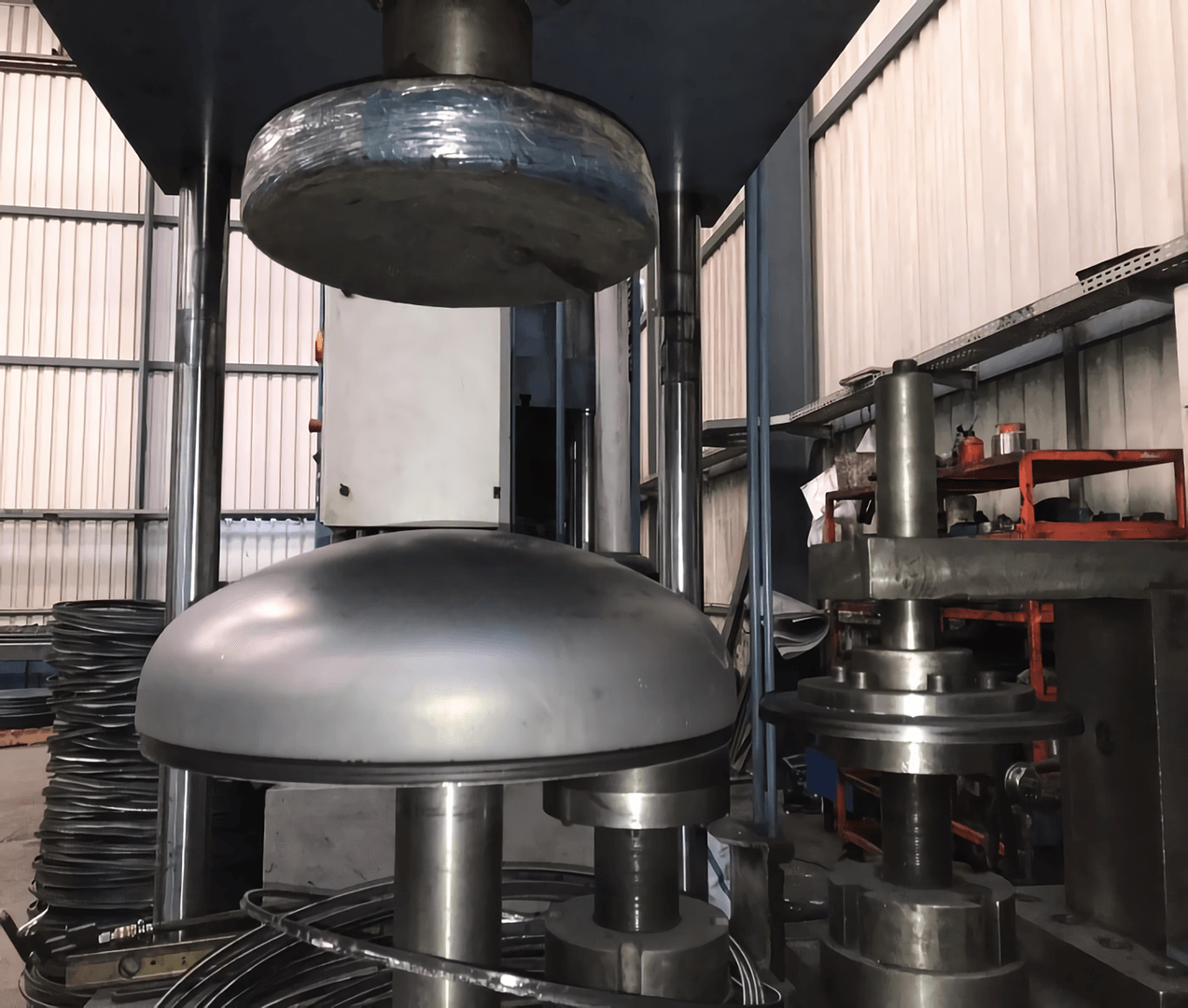

Production Gallery

DISHED HEADS PHOTOGRAPHY

Click any photo to open high-resolution gallery view.
